Technical Specifications

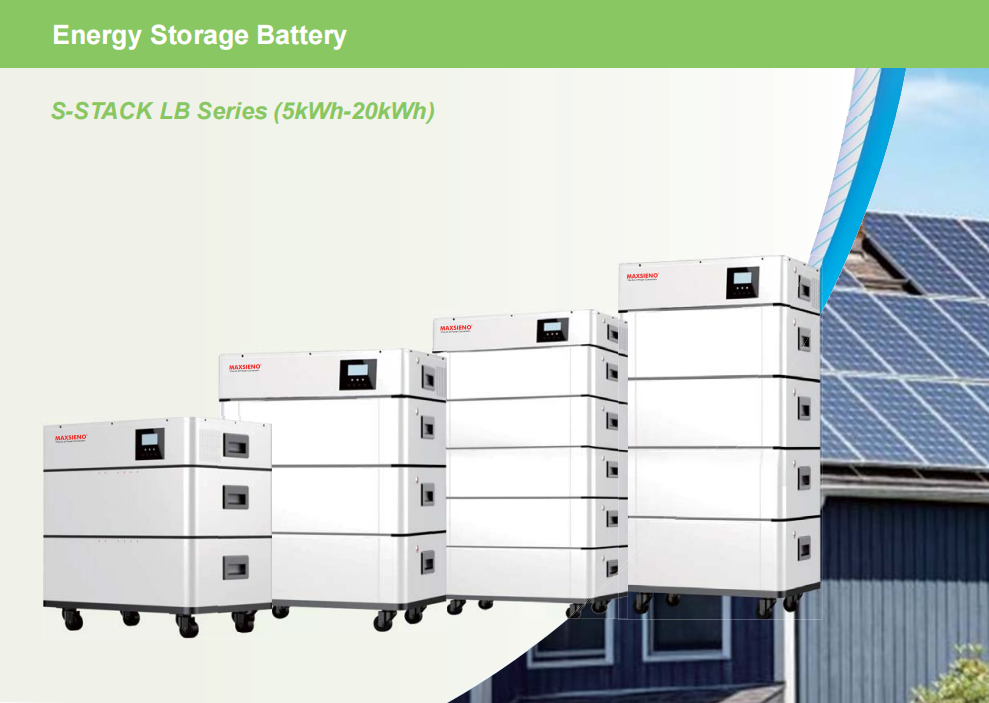

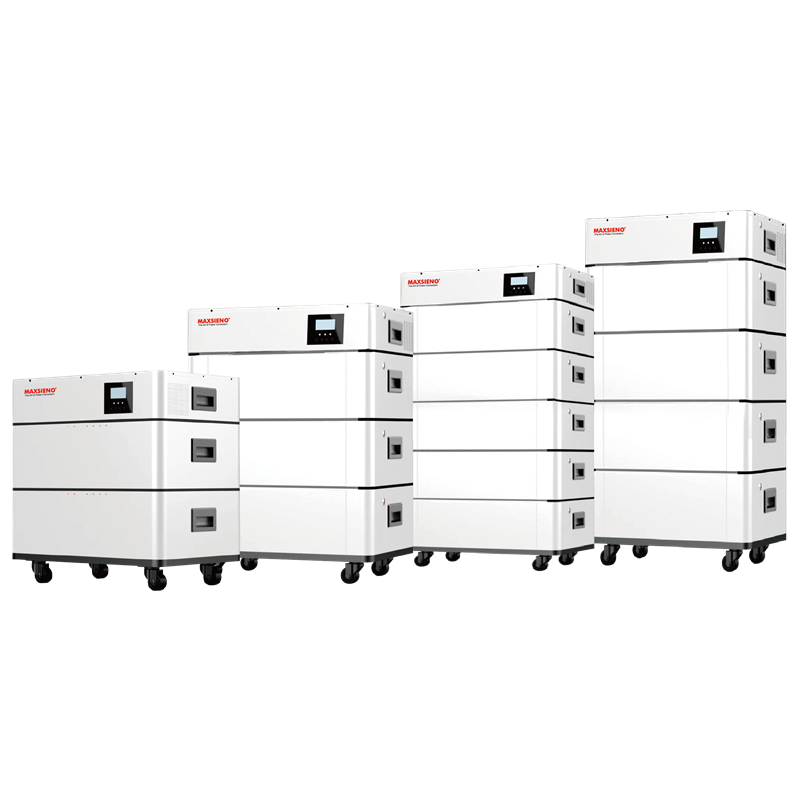

| Stored Energy | S-STACK LB 5kWh | S-STACK LB 10kWh | S-STACK LB 15kWh | S-STACK LB 20kWh | S-STACK LB 25kWh |
| Rated Power | 5KW (Optional 1.5~11KW) | ||||
| Phase Number | Single Phase | ||||
| Battery | |||||
| Rated Voltage | 51.2V | ||||
| Battery Capacity | 100AH | ||||
| Continuous Discharge Current | 100A | ||||
| Peak Discharge Current | 150A<3S | ||||
| Standard Charging Current | 50A | ||||
| Fast Charge Current | 100A | ||||
| Number Of Expandable Batteries | 1 | 2 | 3 | 4 | 5 |
| Optional Capacity Range | 5KWH~25KWH | ||||
| Battery Type | LifePO4 | ||||
| Cycle Life | >2500 times | ||||
| Battery Voltage Range | 40~58.4V | ||||
| Power Module | |||||
| Grid Voltage Range | Appliance: 90~280Vac; UPS:170~280Vac | ||||
| Rated Grid Frequency | 50Hz/60Hz(Auto detection) | ||||
| PV Maximum Input Power | 4500W | ||||
| PV Maximum Open-Circuit Voltage | 450V | ||||
| MPPT Voltage Range | 120~430V | ||||
| The charging and discharging efficiency of the whole machine | 93% | ||||
| PHYSICAL | |||||
| Dimensions (D*W*H)(mm) | 602*403*1263 | ||||
| Net Weight Kg | 80 | 135 | 190 | 245 | 300 |
| Installation method | Floor mounted | ||||
| Operating Temperature Range | Charging Temperature: 0℃ ~45℃ Discharging Temperature: -20℃ ~60℃ | ||||
| Humidity | 5% to 95% | ||||
| Maximum Working altitude | 4000M (Derating up 1500m) | ||||
| Cooling Method | Foced air cooling | ||||
| Dustproof/Waterproof | IP21 | ||||
| Executive Standards | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3 | ||||
Application:
Solar/Wind energy storage system
Community/Villa/Residential/Hospital/School/Gymnasium etc
