Technical Specifications

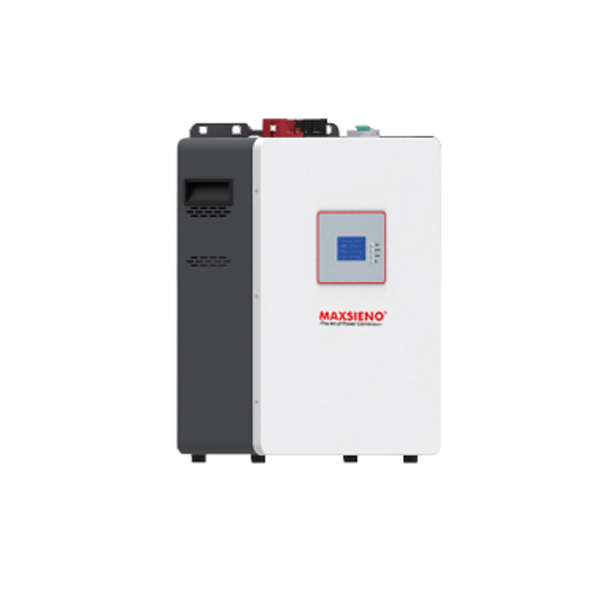

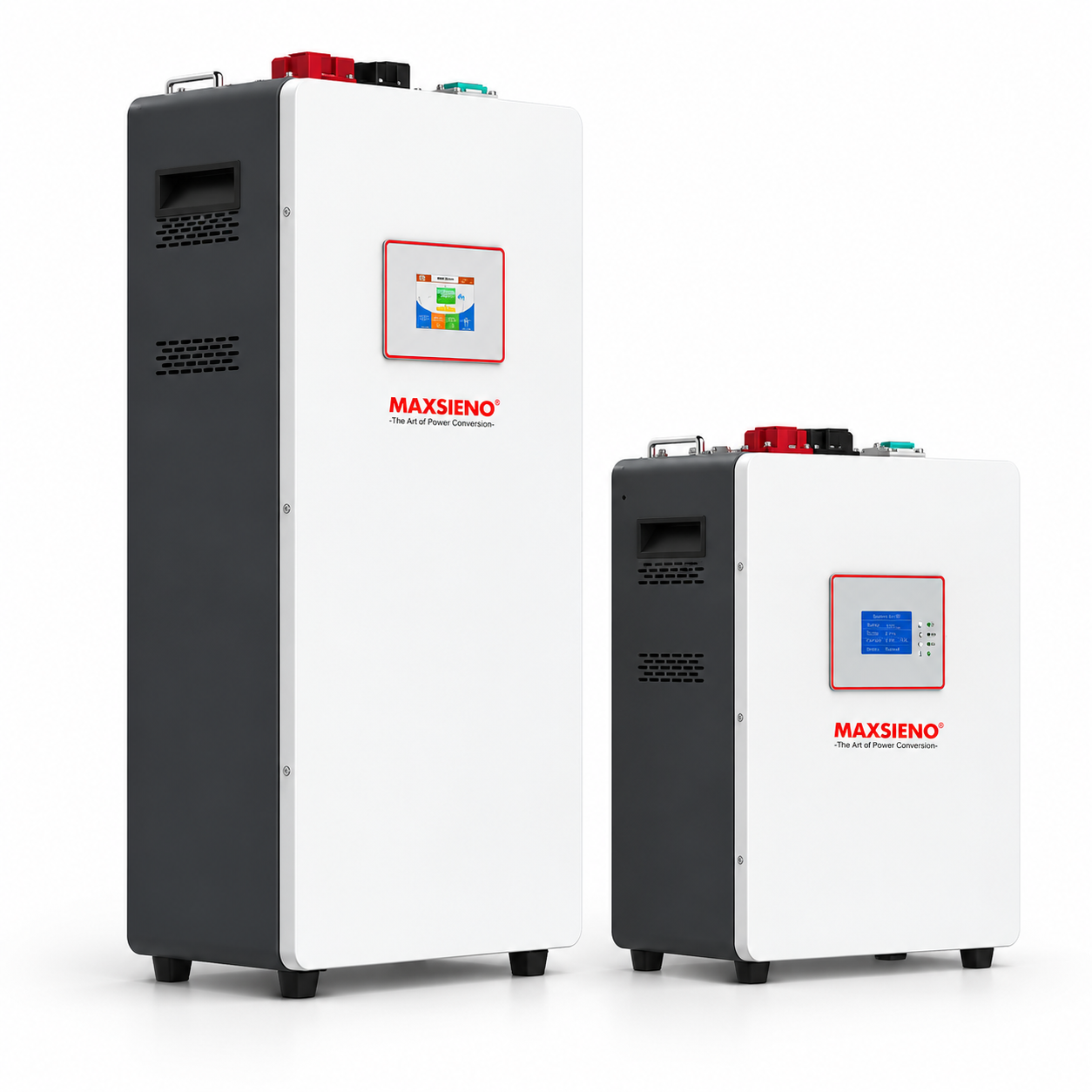

| S256/512-V1 Series LiFePO4 Battery 25.6V & 51.2V 100Ah–314Ah | ||||||||
| Specification | S256-100-V1 | S256-205-V1 | S256-300-V1 | S256-314-V1 | S512-100-V1 | S512-205-V1 | S512-300-V1 | S512-314-V1 |
| Rated Capacity | 100Ah | 205Ah | 300Ah | 314Ah | 100Ah | 205Ah | 300Ah | 314Ah |
| Energy Storage | 2560Wh | 5248Wh | 7680Wh | 8038Wh | 5120Wh | 10496Wh | 15360Wh | 16077Wh |
| Rated Voltage | 25.6V | 25.6V | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V |
| Voltage Range | 21.6V–29.2V | 21.6V–29.2V | 21.6V–29.2V | 21.6V–29.2V | 43.2V–58.4V | 43.2V–58.4V | 43.2V–58.4V | 43.2V–58.4V |
| Max. Charge Current | 100A | 200A | 200A | 200A | 100A | 200A | 200A | 200A |
| Max. Discharge Current | 100A | 200A | 200A | 200A | 100A | 200A | 200A | 200A |
| Discharge Cut-off Voltage | 21.6V | 21.6V | 21.6V | 21.6V | 43.2V | 43.2V | 43.2V | 43.2V |
| Floating Voltage | 28.8V | 28.8V | 28.8V | 28.8V | 57.6V | 57.6V | 57.6V | 57.6V |
| Cycle Life | 6000 cycles @ 80% DOD | 6000 cycles @ 80% DOD | 6000 cycles @ 80% DOD | 6000 cycles @ 80% DOD | 6000 cycles @ 80% DOD | 6000 cycles @ 80% DOD | 6000 cycles @ 80% DOD | 6000 cycles @ 80% DOD |
| Certification | UN38.3 / MSDS | UN38.3 / MSDS | UN38.3 / MSDS | UN38.3 / MSDS | UN38.3 / MSDS | UN38.3 / MSDS | UN38.3 / MSDS | UN38.3 / MSDS |
| Communication | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN | RS485 / CAN |
| Working Temperature | -20°C to 55°C | -20°C to 55°C | -20°C to 55°C | -20°C to 55°C | -20°C to 55°C | -20°C to 55°C | -20°C to 55°C | -20°C to 55°C |
| Website Feature / General Parameter Notes | ||||||||
| Integrated BMS | Yes | |||||||
| Cell Type | A-Grade LiFePO4 | |||||||
| Display | Touchscreen / LCD, depending on model configuration | |||||||
| Charge / Discharge | 100A / 200A, model dependent | |||||||
| Communication | RS485 / CAN | |||||||

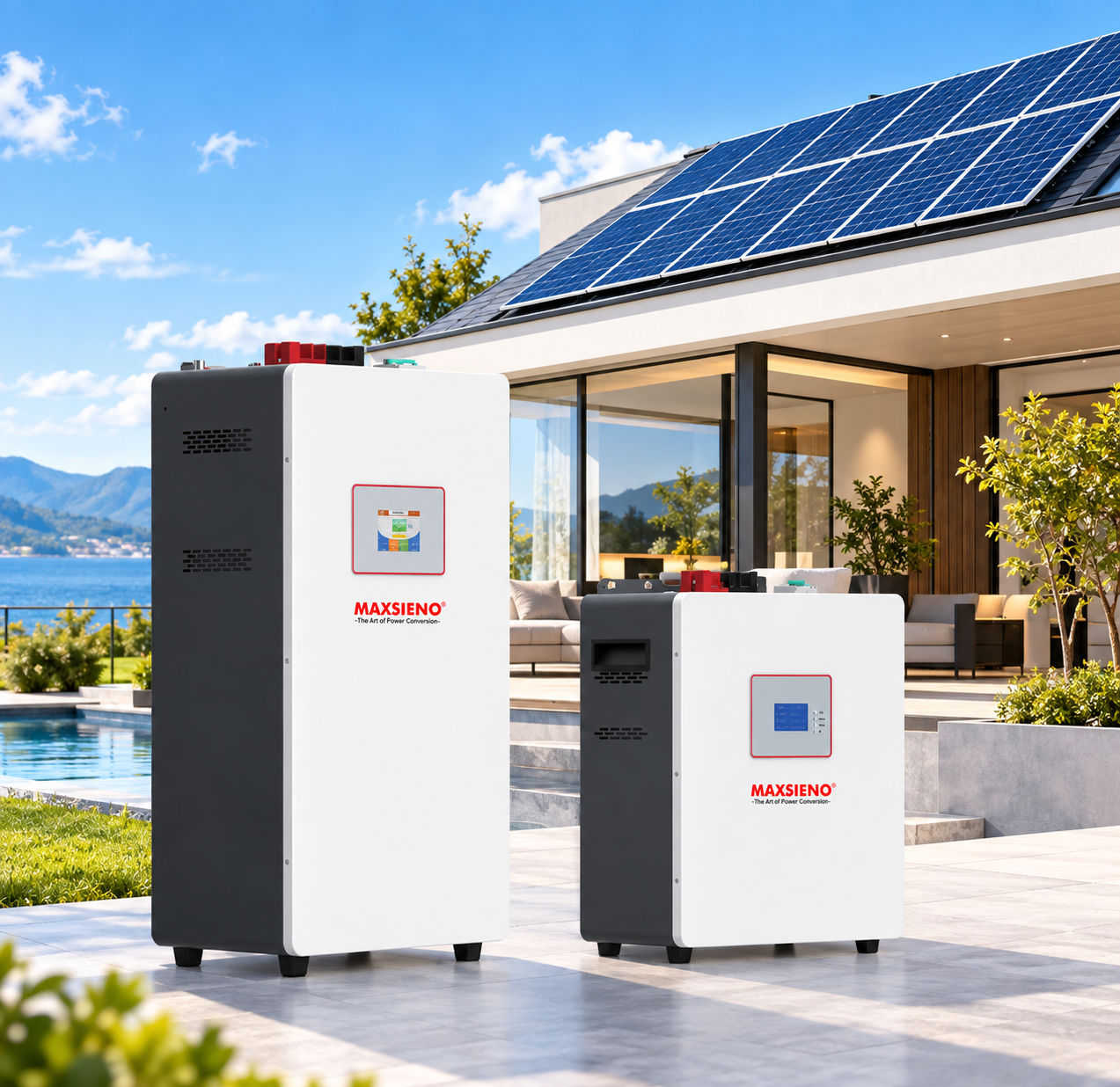

| Recommended Applications | Residential solar storage / backup power / off-grid systems | |||||||
