Technical specifications
| MODEL | SOUL VMIV-3.6KW | SOUL VMIV-4.2KW | SOUL VMIV-6.2KW |
| Rated Power | 4200W | 3000W | |
| Input Voltage Waveform | Pure Sine Wave | ||
| Normal Input voltage | 230VAC | ||
| Low Less Voltage | 170VAC±7V(UPS) | ||
| 90VAC±7V(Appliances) | |||
| Low Less Return Voltage | 180VAC±7V(UPS) | ||
| 100VAC±7V(Appliances) | |||
| High Less Voltage | 280VAC±7V | ||
| High Less Return Voltage | 270VAC±7V | ||
| Max AC Input Voltage | 300VAC | ||
| Nominal Input Frequency | 50Hz/60Hz(Auto detection) | ||
| Low Less Frequency | 40±1HZ | ||
| Low Less Return Frequency | 42±1HZ | ||
| High Less Frequency | 65±1HZ | ||
| High Less Return Frequency | 63±1HZ | ||
| Output Short Circuit Protection | Circuit Breaker | ||
| Efficiency(Line Mode) | >95% (Rated R load, battery full charged) | ||
| Transfer Time | 10ms typical (UPS); 20ms typical (Appliances) | ||
| Inverter Mode Specifications | |||
| Output Voltage Waveform | Pure Sine Wave | ||
| Output Voltage Regulation | 230VAC±10% | ||
| Output Frequency | 50Hz | ||
| Peak Efficiency | 0.93 | ||
| Overcharge Protection | 5s≥110% load 10s≥105%~110% load | ||
| Surge Capacity | 2*Rated power for 5 seconds | ||
| Nominal DC Input Voltage | 24VDC | 48VDC | |
| Cold Start Voltage | 23VDC | 48VDC | |
| Low DC Warning Voltage | |||
| Load<50℃ | 23.5VDC | 46VDC | |
| Load≥50℃ | 23VDC | 46VDC | |
| Low DC Warning Return Voltage | |||
| Load<50℃ | 21.5VDC | 43VDC | |
| Load≥50℃ | 21VDC | 42VDC | |
| High DC Recovery Voltage | 32VDC | 62VDC | |
| High DC Cut off Voltage | 33VDC | 63VDC | |
| No Load Power consumption | <40W | <55W | |
| Charging Mode Specifications | |||
| Charging Algorithm | 3-Step | ||
| Charging Current(UPS) Norminal Input Voltage | 100Amp(VI/P=230Vac | ||
| Bulk Charging Voltage | |||
| Flooded Battery | 29.2VDC | 58.4VDC | |
| AGM/GEL Battery | 28.2VDC | 56.4VDC | |
| Floating Charge Voltage | 27VDC | 54VDC | |
| MPPT Solar Charging Mode | |||
| Max PV Array Power | 5000W | 6000W | |
| Max PV Current | 27A | ||
| Normal PV Voltage | 320VDC | 360VDC | |
| PV Array MPPT Voltage Range | 60VDC~450VDC | ||
| Max PV Array Open Circuit Voltage | 500VDC | ||
| Max Charging Current (AC Charger Plus Solar Charger) | 12Amp | ||
| Operating Temperature Range | -10℃ ~60℃ | ||
| Storage Temperature | -15℃ ~60℃ | ||
| Dimensions (D*W*H)(mm) | 420x310x110 | ||
| Net Weight. KG | 10 | 12 | |
The Specifications Are Subject To Change Without Prior Notice By The Manufacturer
Features:
Pure sine wave inverter.
Customizable status LED ring with RGB lights
Touchable button with 4.3”colored LCD
Built-in Wi-Fi for mobile monitoring (APP is required)
Supports USB On-the-Go function
Built-in anti-dusk kit
Reserved communication ports for BMS (RS485,CAN-BUS,Rs232)
Configurable input voltage ranges forhome appliances and personal computersvia LCD control panel
Configurable output usage timer and prioritization
Configurable charger source priority via LCD control panel
Configurable battery charging current based on application LCD control panel
Compatible to utility mains or generator power

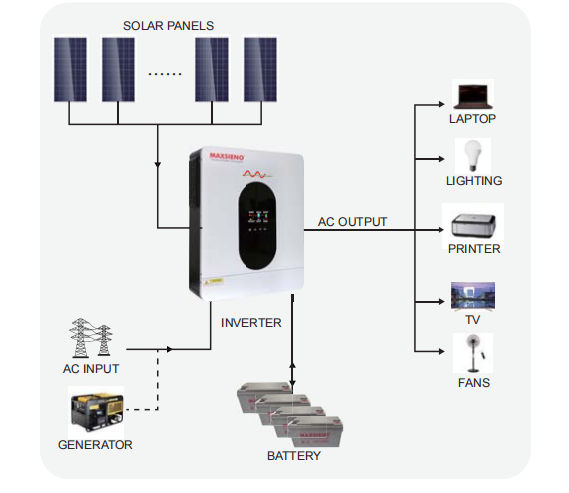

System connection：
